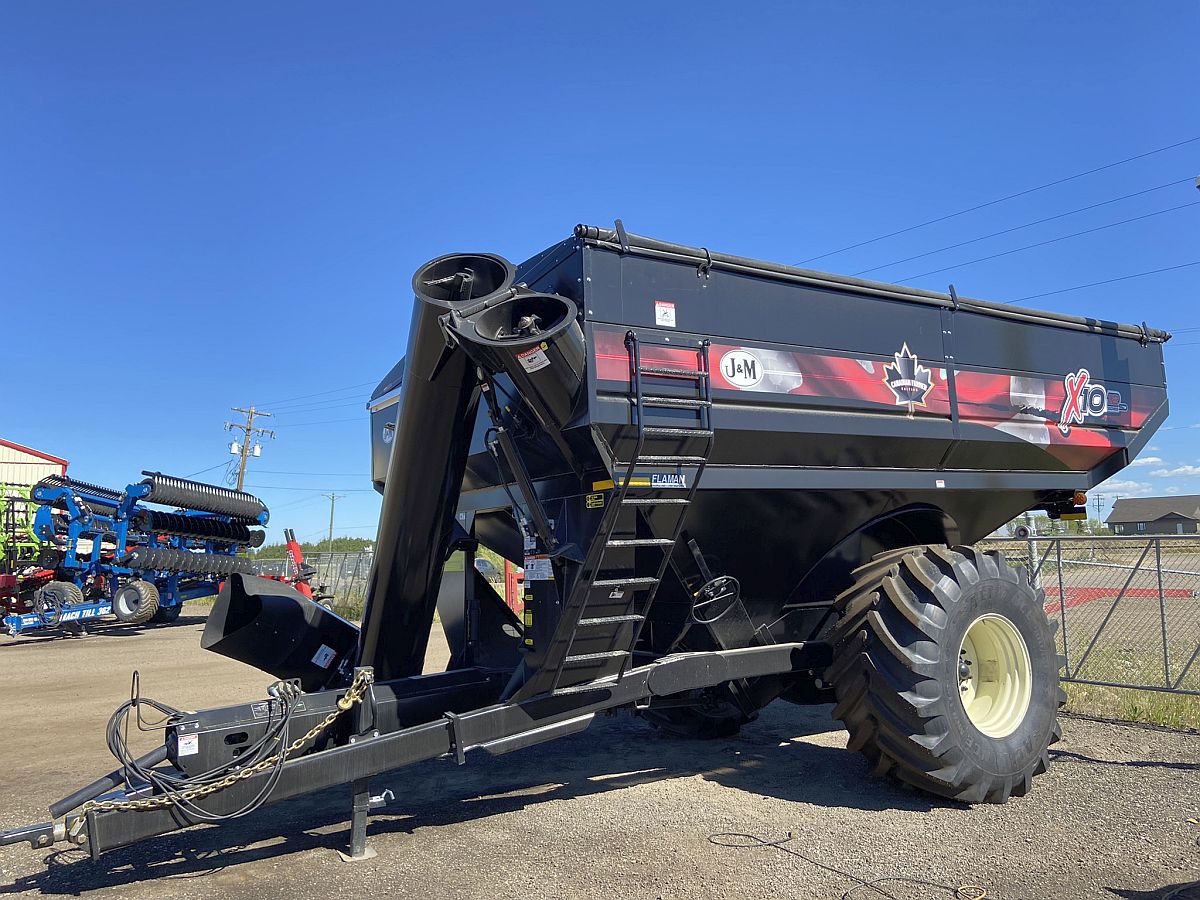

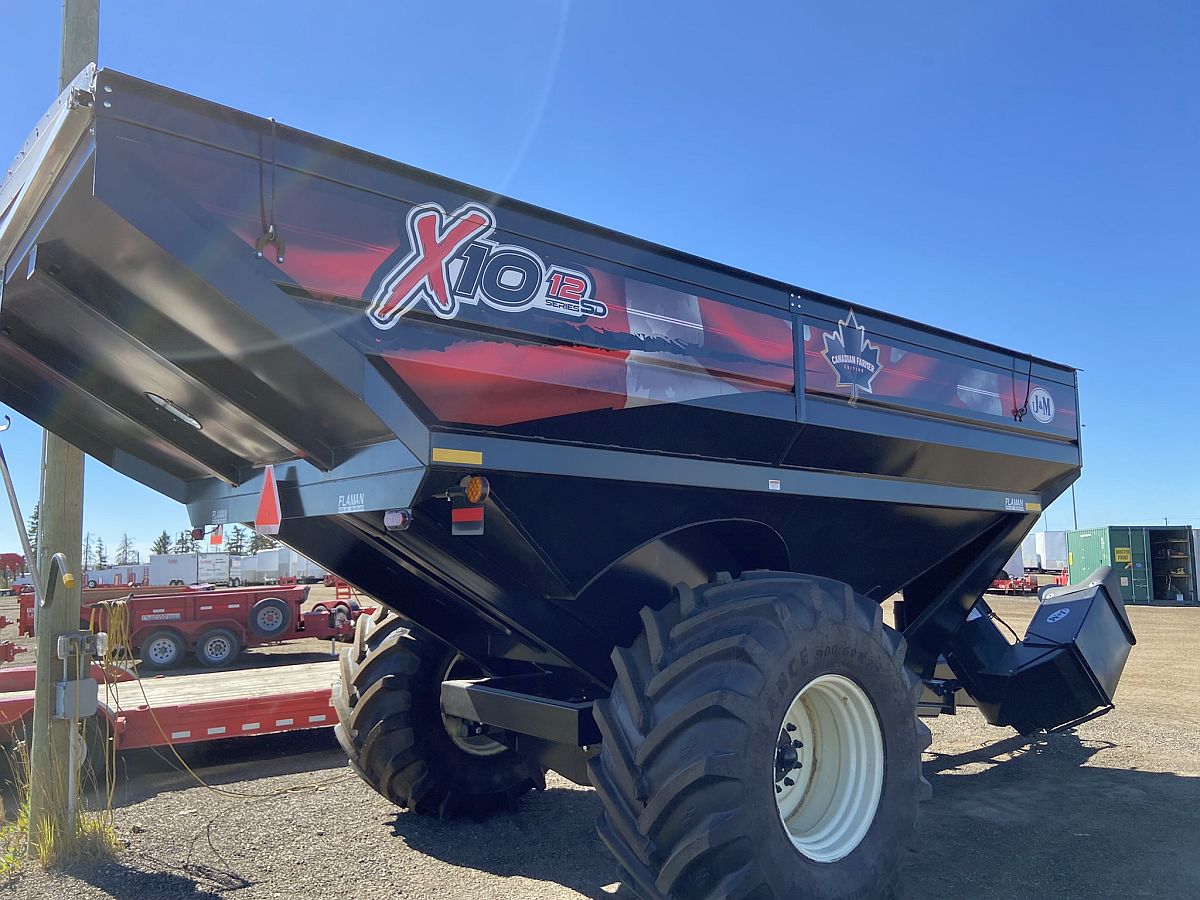

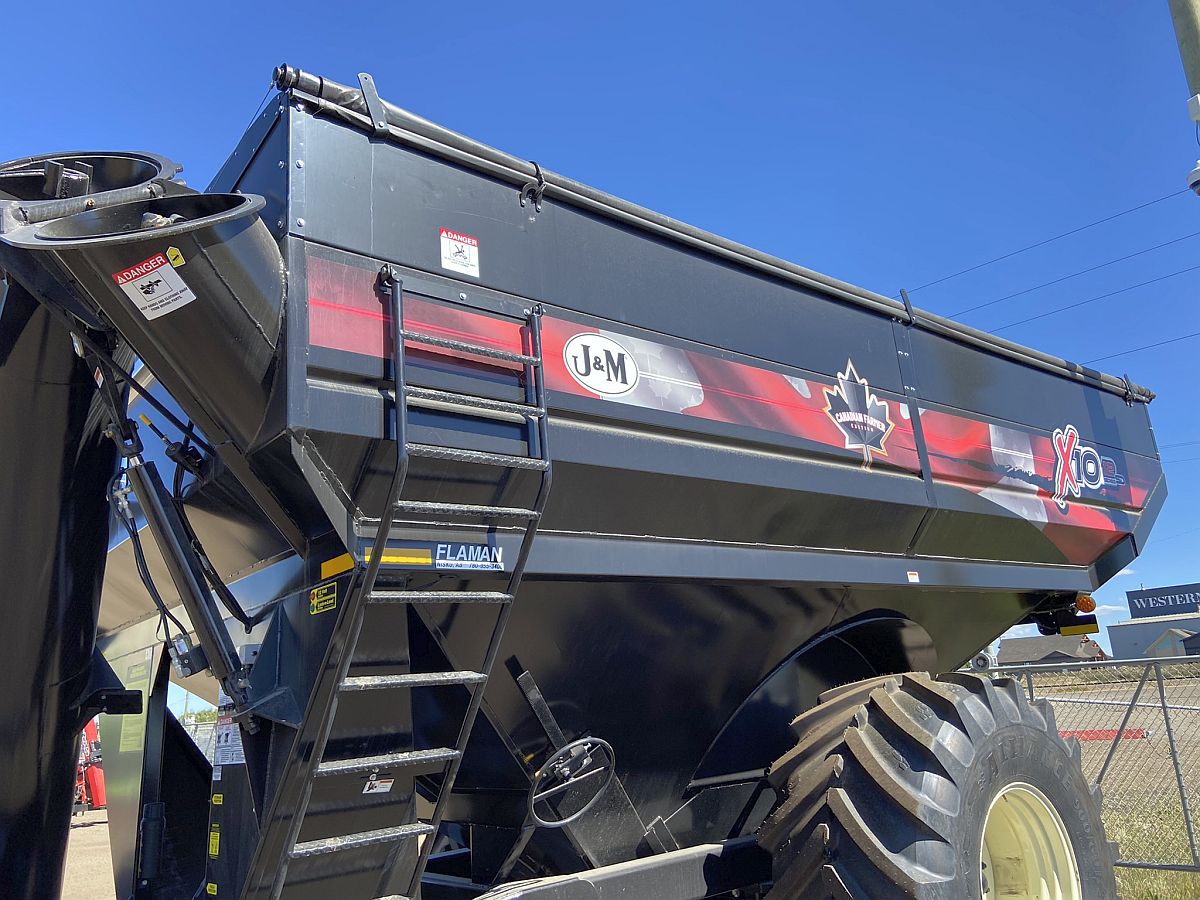

J & M 1012-20S X-Tended Reach Grain Cart *Patriotic Edition

The 12 & 22 Series J&M X-Tended Reach Grain Carts are available in 875 to 1,500 bushel capacities. The upper auger has been extended for even greater outward, upward, and forward reach, all while folding diagonally along the front of the cart for compact storage. The in-line auger design allows the grain to quickly travel straight from lower to upper auger, while the low side of the grain cart features a bolt-on tank design that extends toward the combine auger for an additional two feet. The 22 Series X-Tended Reach models offer the same features, but also includes J&M’s patented leaner tank design.


New Bullet Auger: The new 20” bullet auger unloads 600+ bushels per minute, the same rate as a larger 22” auger.

In-Line Auger Design: The grain is not re-directed, ensuring efficiency and better transfer.

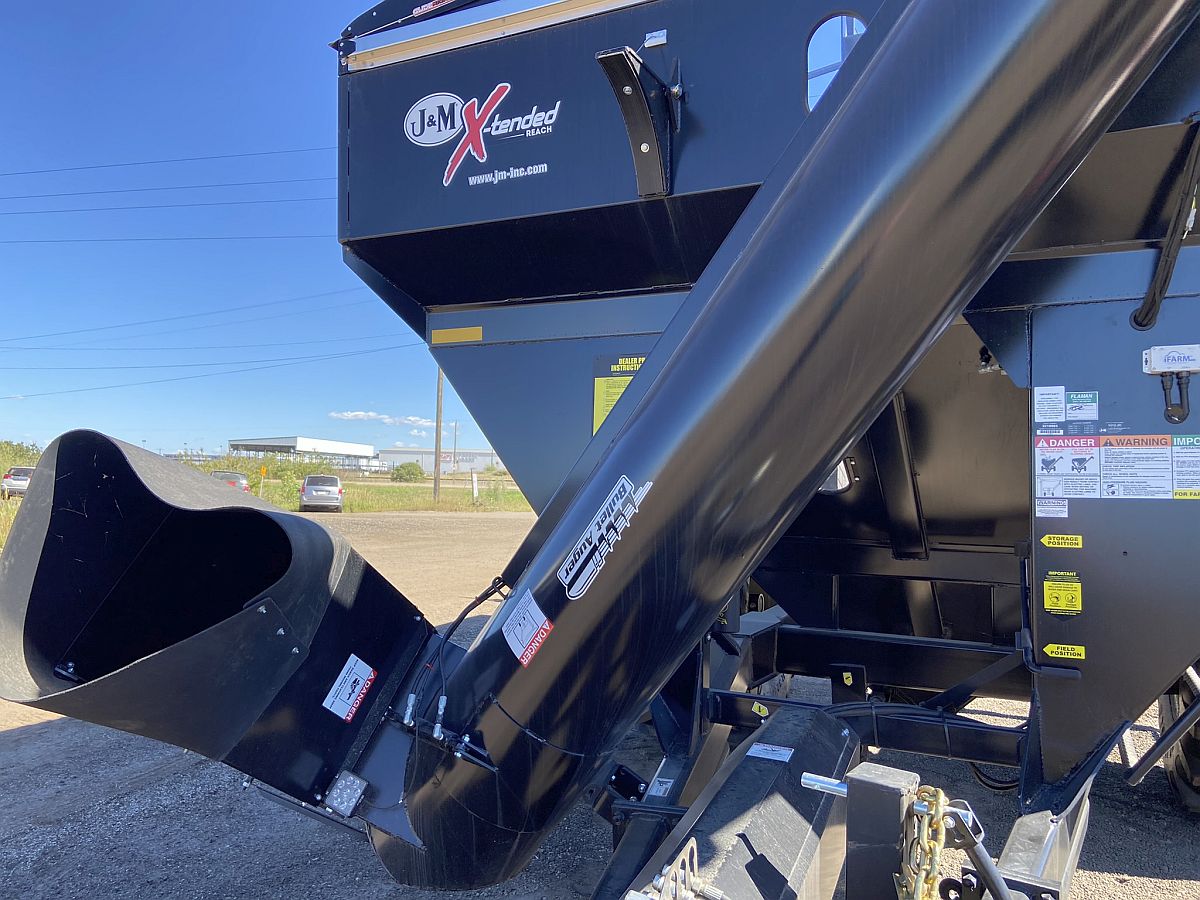

Telescoping Flow Control Spout: Extends in the outward position to maximize side reach and retracts when unloading in the downward position to maximize unloading height.

Excellent Clean-Out: Allows for unrestricted grain flow and prevents bridging in high moisture.

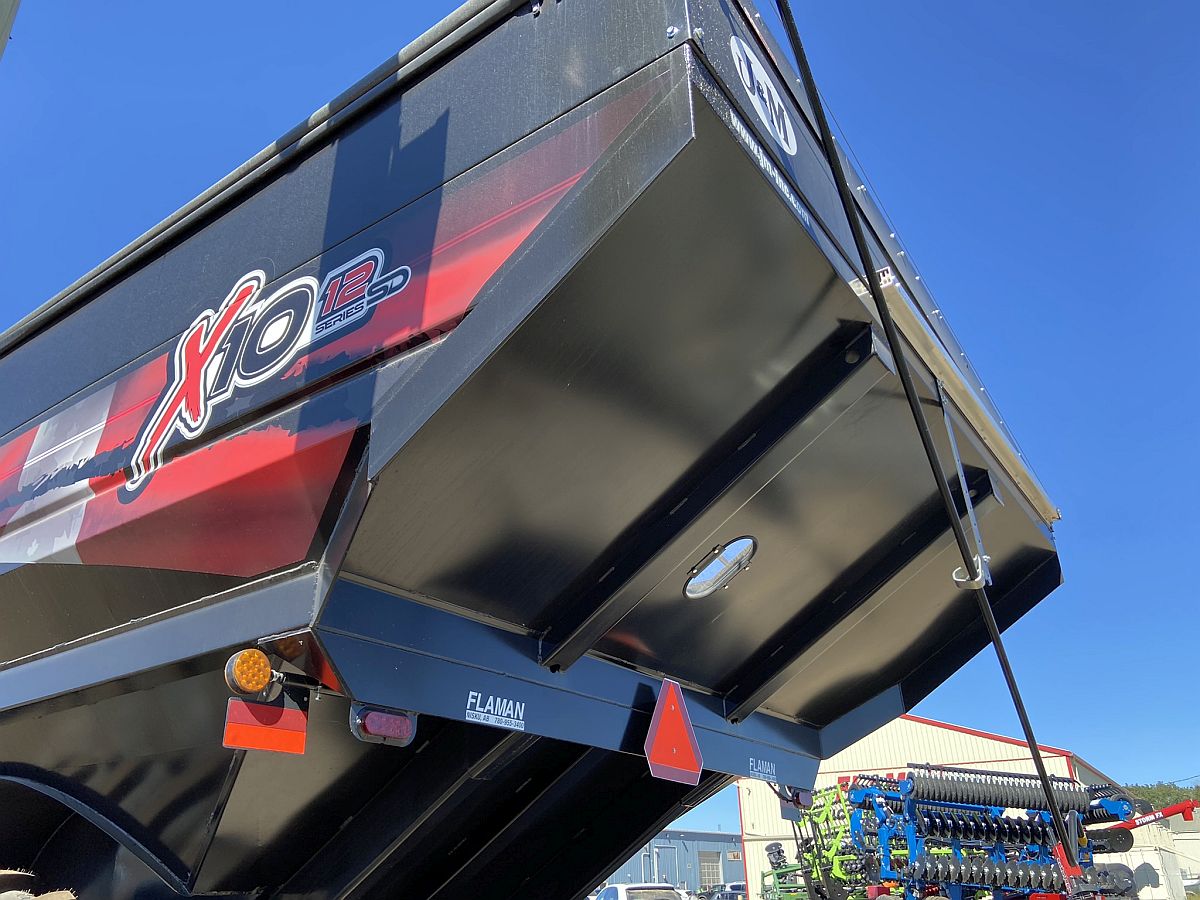

Bolt-On Tank Design: Allows tank to extend toward the combine auger.

SPECS:

• 1,025 Bushels

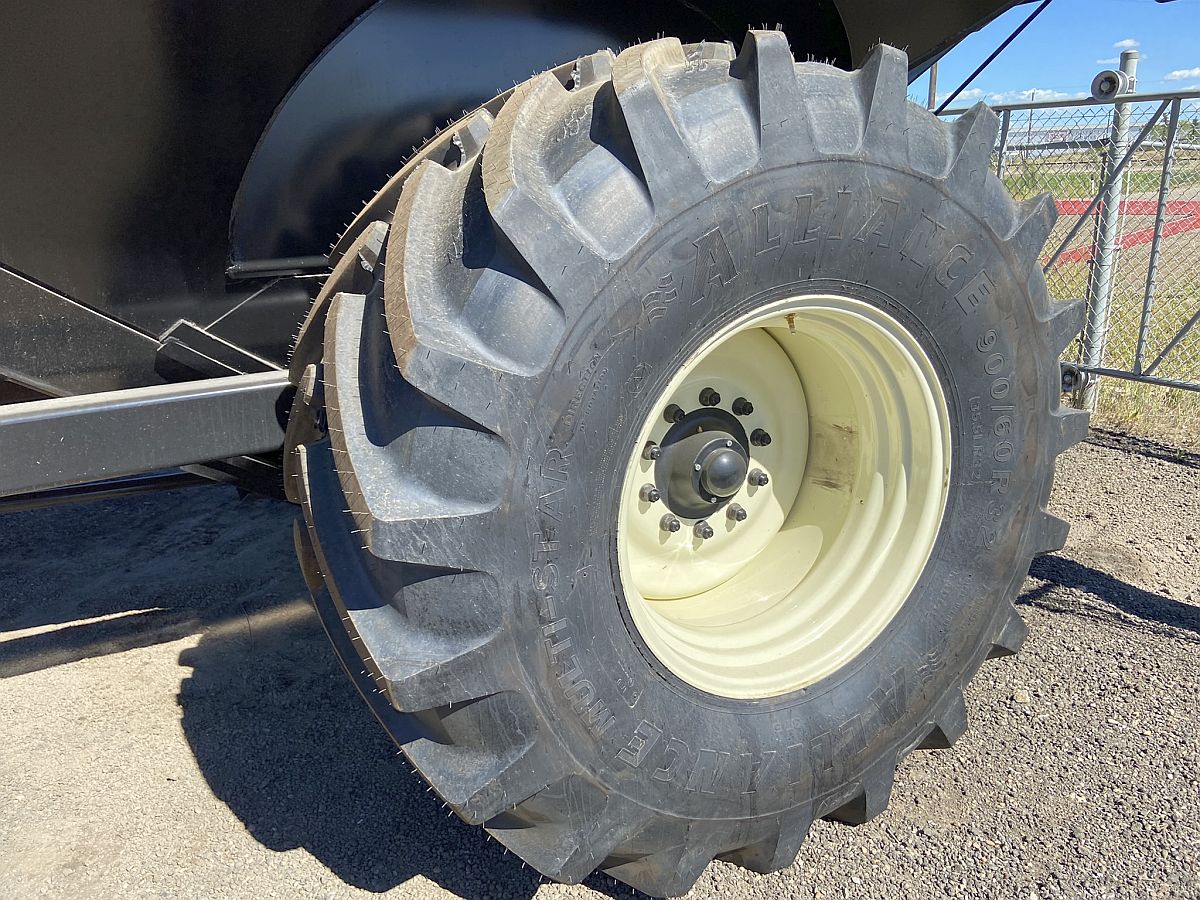

• 30x32 Wheels, 10 Hole
• 10 bolt hubs

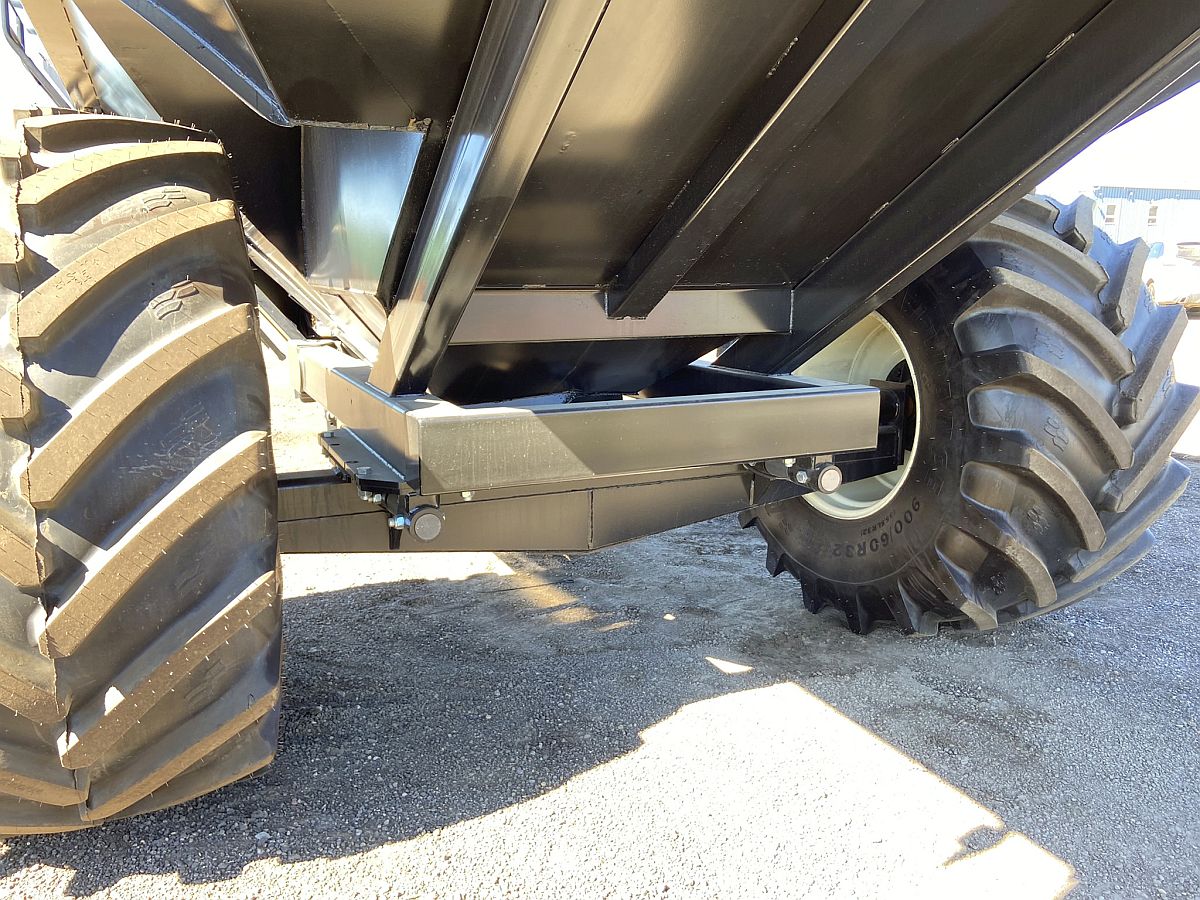

• Spindles (2): 4.5" Diameter
• 900/60R32 Lug Tires
• 20" Bullet Auger
• Up to 600 Bu/Min
• Safety Chain
• Michels Roll Tarp
• Total Weight (approx.): 12,900 lbs
• Tounge Weight Loaded: 4,200 lbs

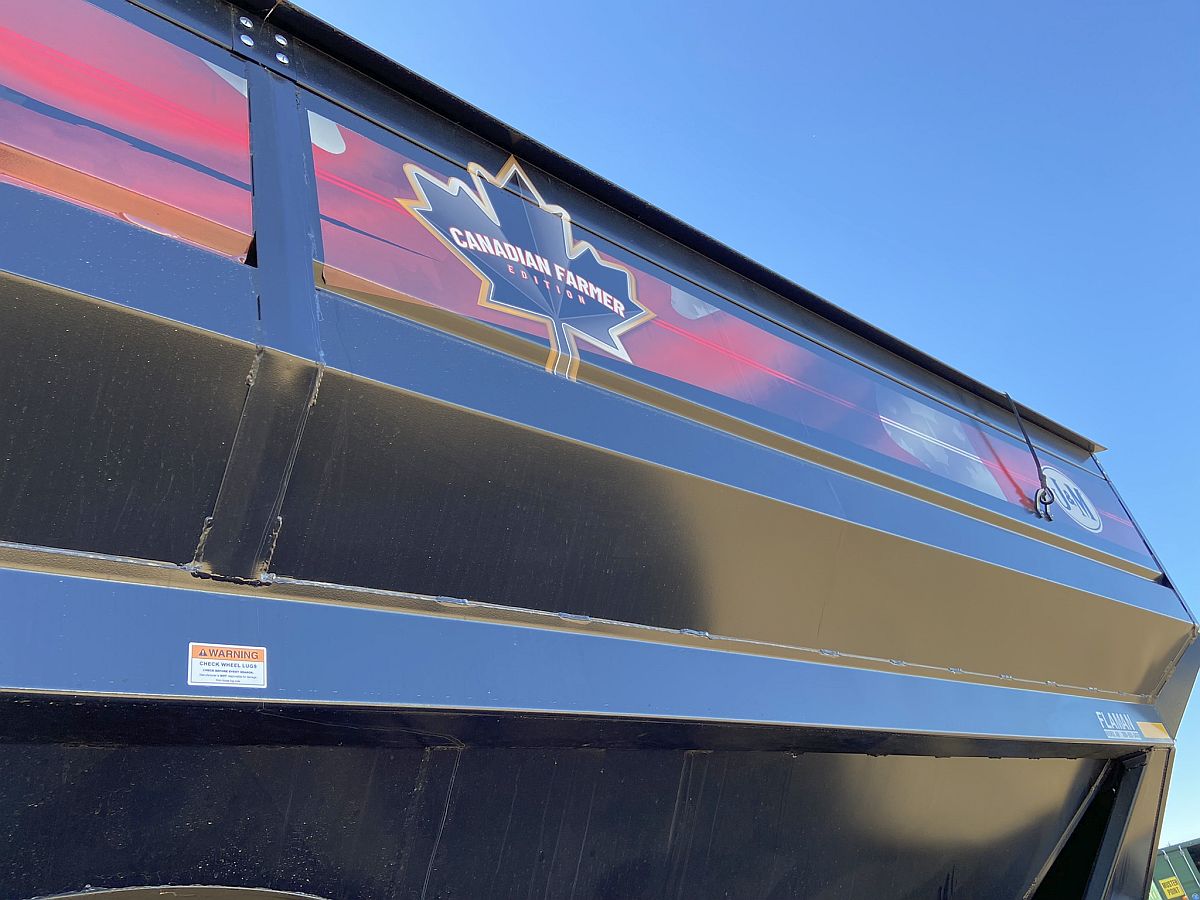

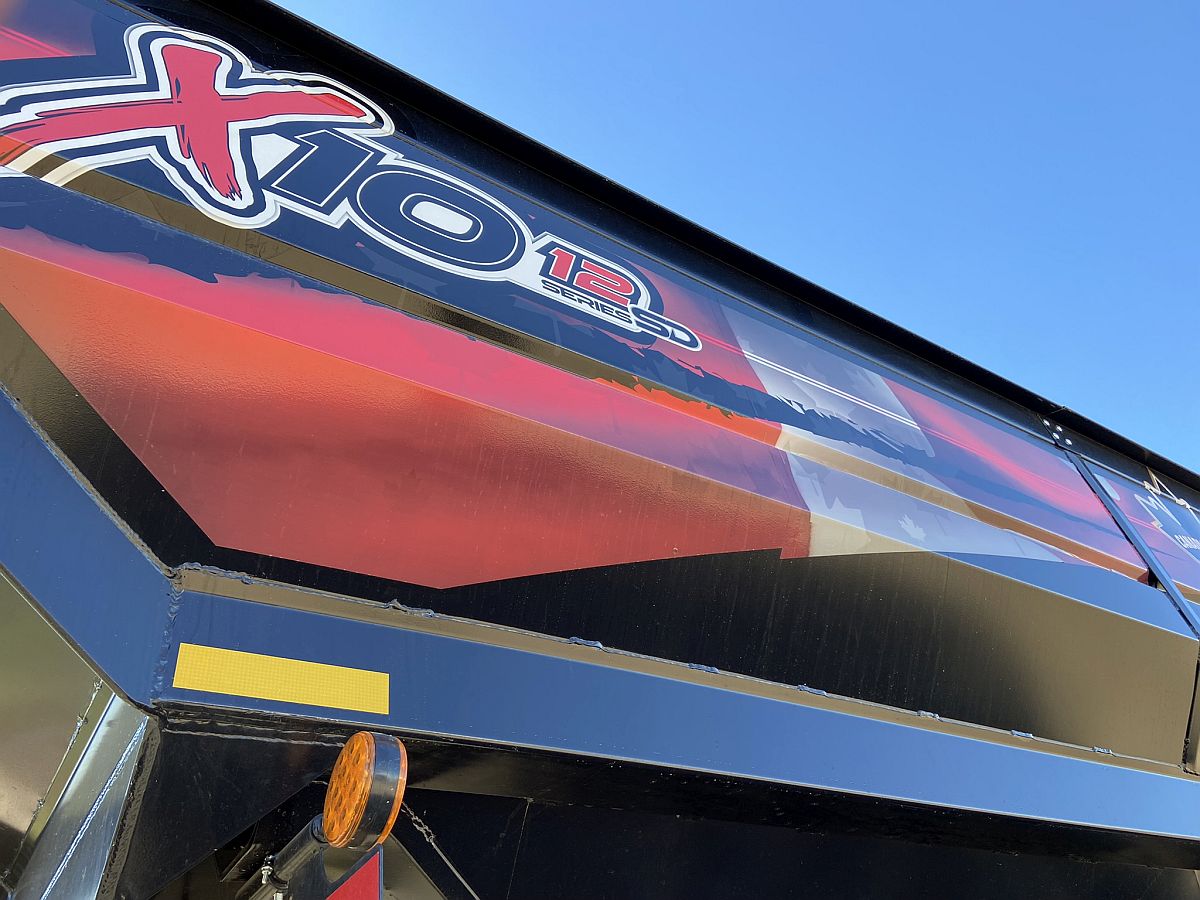

• Black "Patriotic" Edition
• *Scale (5 Point System) with iFarm

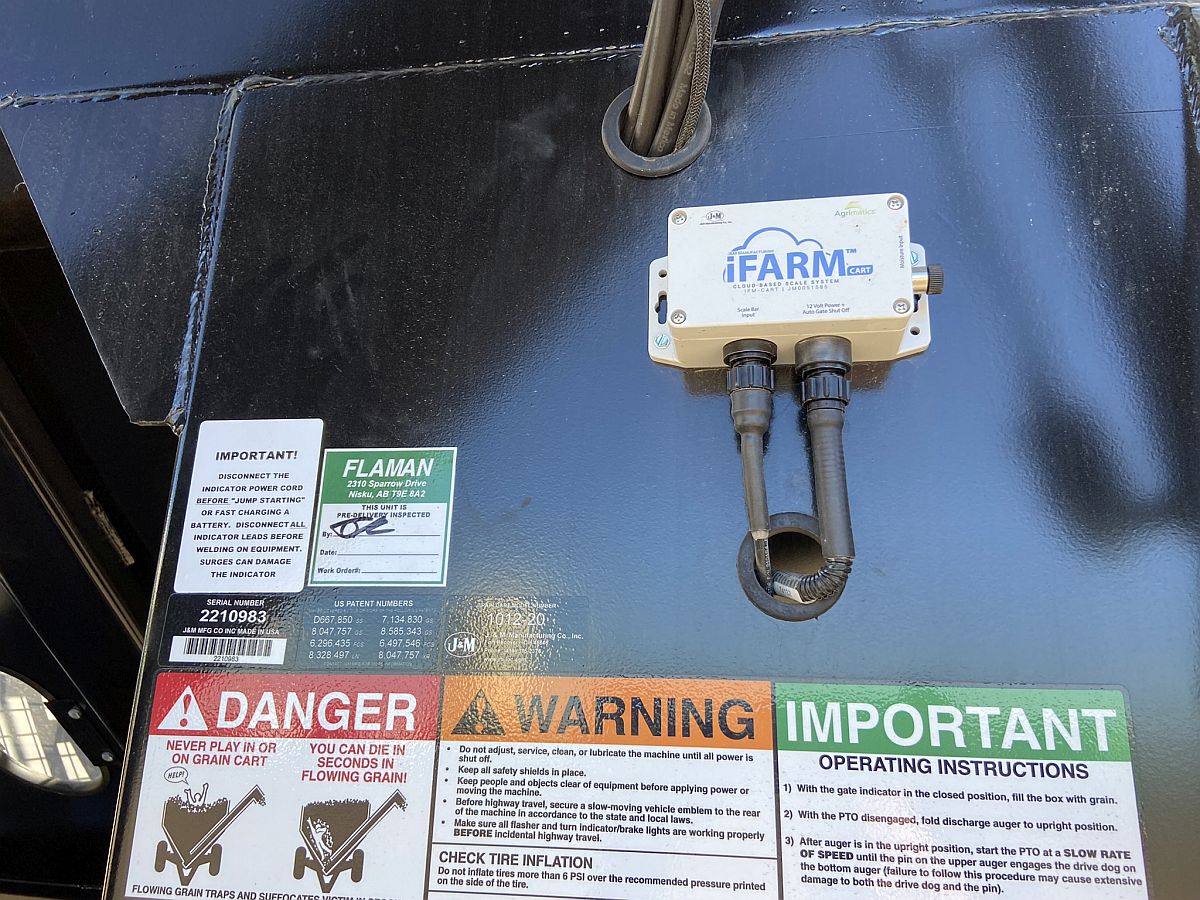

*J&M iFarm Plus by Agrimatics™J&M iFarm Plus by Agrimatics™ is the leading edge of agricultural weighing systems:

• The patent pending system can connect wirelessly to any compatible in-range mobile device providing world-class indicator displays to the entire team. iFarm Plus is simple to install with a long-lasting battery to easily get you through the harvest or planting season. Our rugged design can handle extreme temperatures, vibrations, mud, sun, rain and snow.
• Uses your mobile device as an advanced scale indicator and harvest data manager
• App based software with free updates
• Multiple users
• Moisture sensor option
• Auto gate option *Must purchase optional solenoid package (IFM-GS-1P)
• Cloud based storage option
• Powered from tractor with battery back-up

Financing and Leasing available OAC.

Deliveries are available, ask your salesperson for details.
