AGI UTX U-Trough Auger

AGI’s UTX U-Trough is built with resilience and longevity in mind. It’s able to withstand the harshest physical demands, sports a unique U-Trough design to reduce the chance of grain damage or plugging and has a capacity of up to 9,000 bph – which will save you time and money.

Features

• Wear Edge Technology™ extends the life of the flighting
• Durable Powder Coat Paint protects the auger finish and repels rust
• Removeable Tow Bar easily connects and detaches from the hitch
• Solid Tube Guard completely encloses the driveline
• Square One-Bolt Flight Connections provide improved performance through positive torque transfer for smooth operation
• Hydraulic Winch helps raise and lower the auger with ease and precision
• Triple Banded Belts maintain speed by providing better tension with less slippage
• Sealed, grease-lubricated Top Drive comes with forged steel sprockets and heavy-duty chain, both protected by durable cover and designed to match the auger capacity
• Top Drive Chain Tensioner provides better adjustment capabilities and consistent chain drive tension
• Driveshaft and Bearings are constructed of durable oil impregnated hardwood for long, quiet operation and can be easily replaced without disassembling the driveshaft
• Hose Routing provides a cleaner, sleeker look, while protecting the hoses from the elements

Technology

• REVERSING GEARBOX: Comes with shifting linkage and lockout, allowing the operator to safely reverse the auger at all angles.

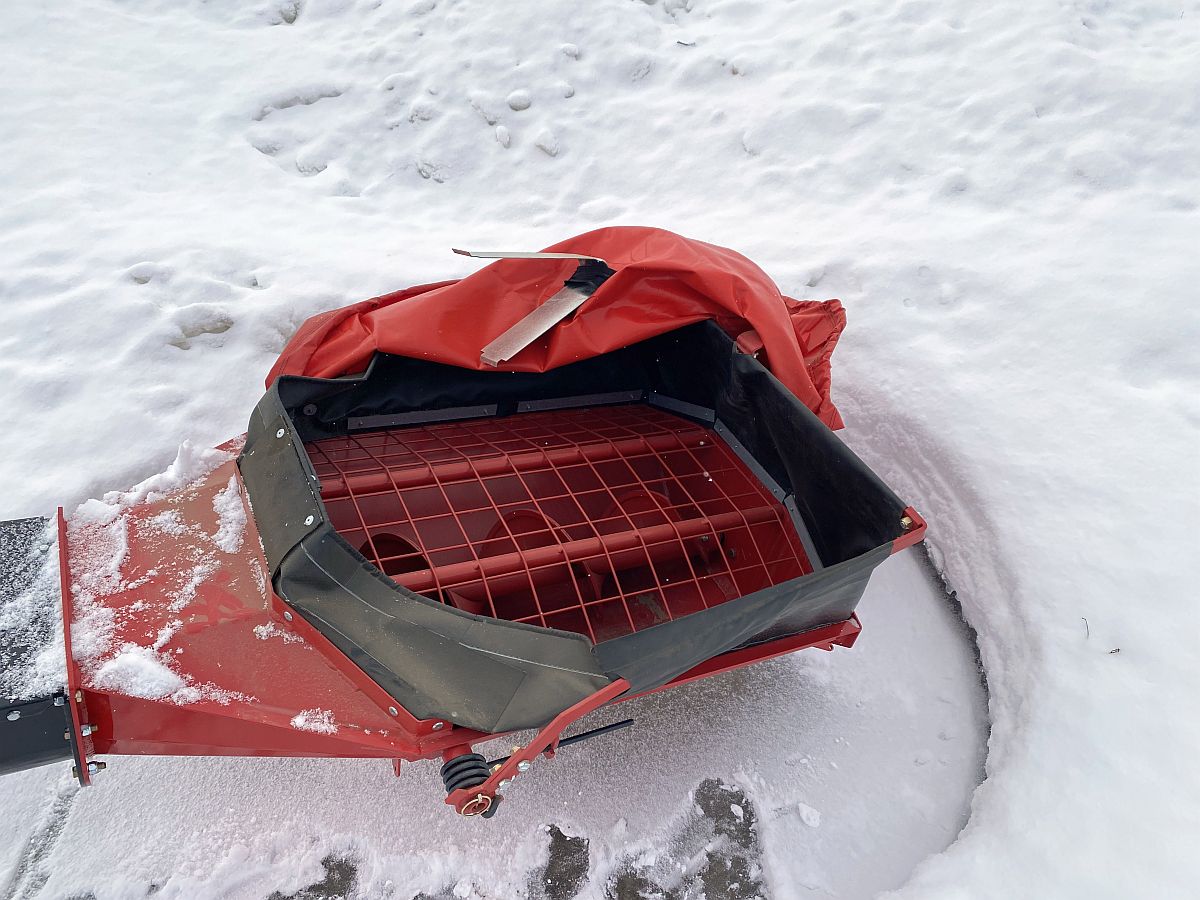

• COLLAPSING SPRING LOADED HOPPER EXTENSION: Quickly and easily fit under some of your lowest and hardest to reach bin unloads and hopper bins.

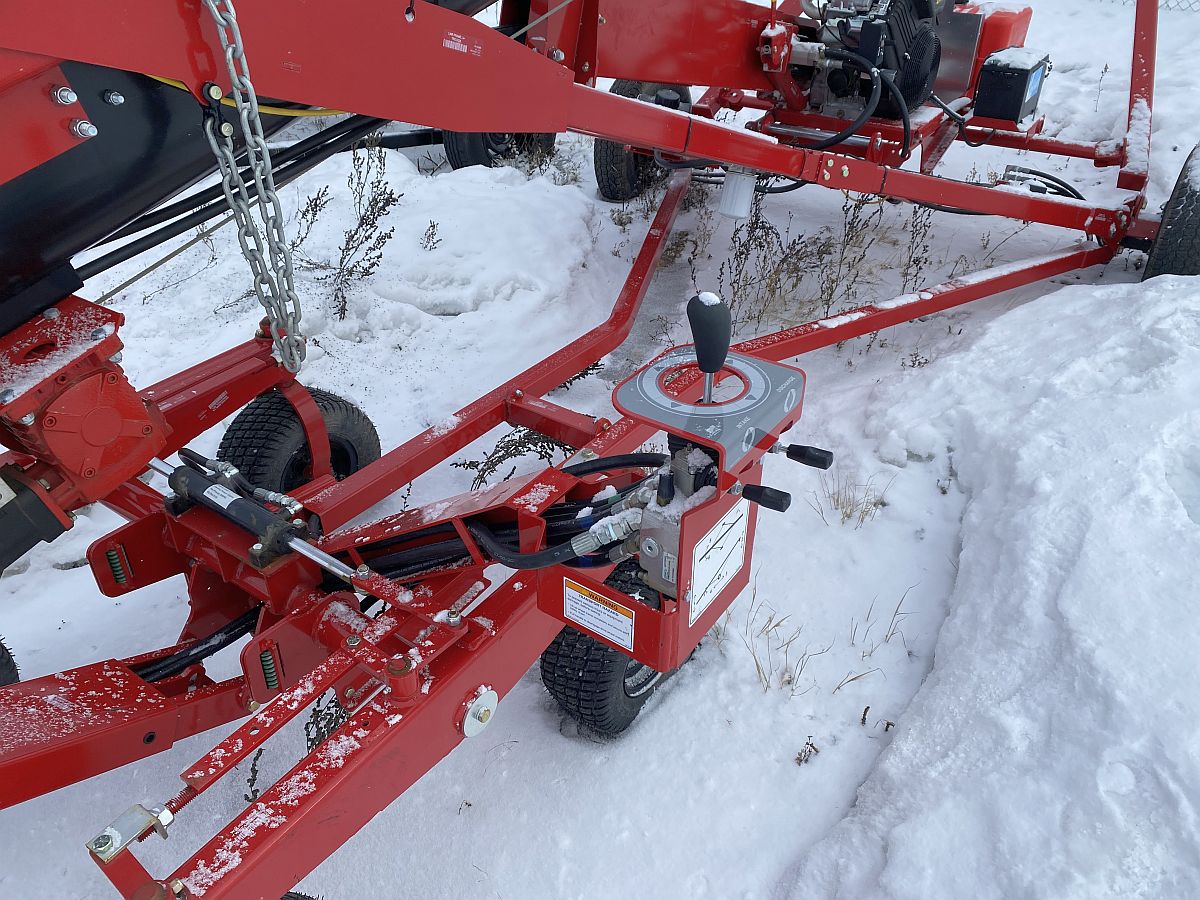

• HEAVY-DUTY SELF-PROPELLED MOVER KIT WITH JOYSTICK HYDRAULIC STEERING:  The heavy-duty, self-propelled mover makes setting up at bins and moving around the yard fast and easy, so you can get the job done in less time.

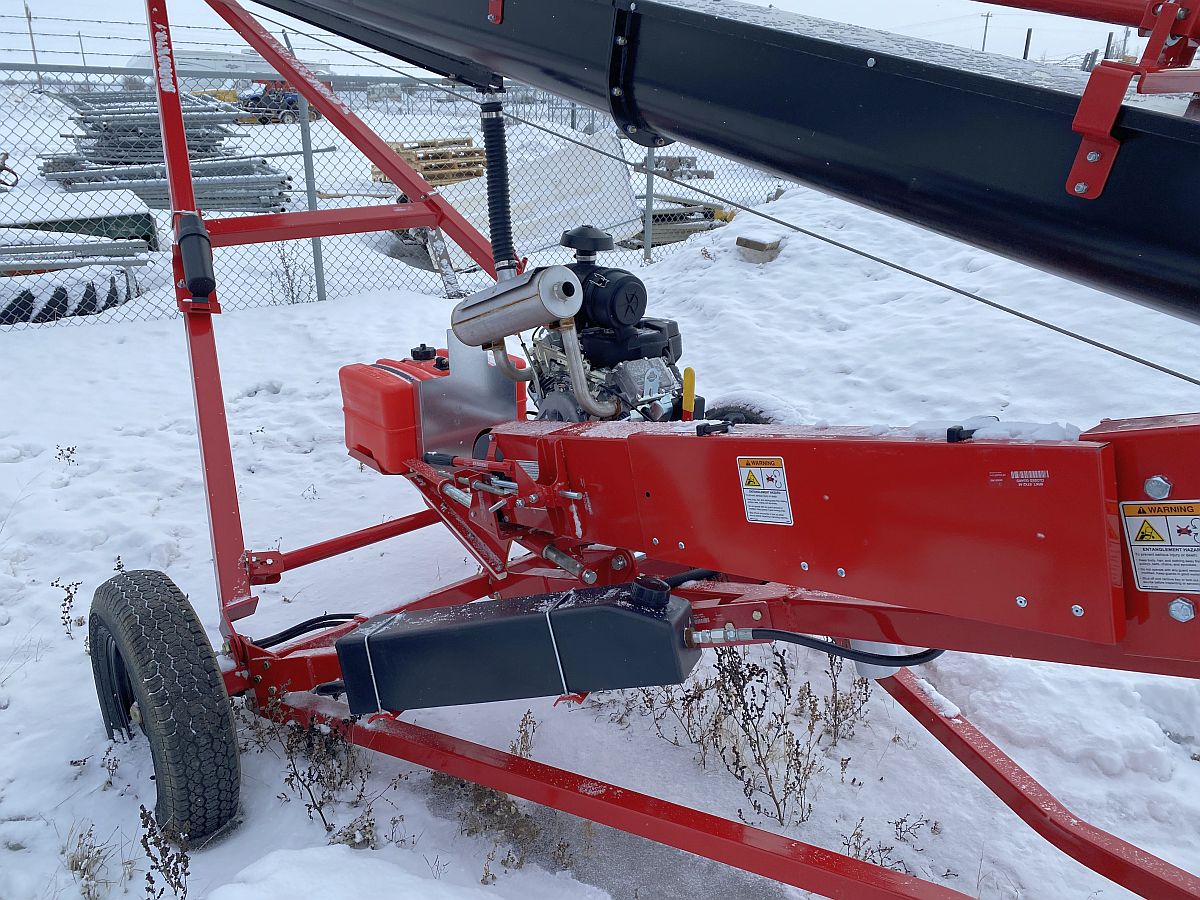

• GAS MOTOR: Vanguard 37 EFI gas motor, with a large 44-liter gas tank that lets you work as long as you need to.
• WORK LIGHTS: LED work lights allow you to work later so you can get the job done sooner.
• TRIPLE-GROOVE ELECTRIC CLUTCH: Start and stop the auger without shutting down the gas engine drives.

Specs:

• 11" Trough
• 44' Long
• Reversing Gearbox
• Truck and ATV Hitch
• Hydraulic Winch Lift
• 4 wheel HD Mover Console with Joystick
• 40 HP EFI Vanguard Engine
• Up to 9,000 bhp
• Light Kit
• Triple Groove Electric Clutch
• Powder Coated
