1314 Airlock & 614 Blower Package (40HP)

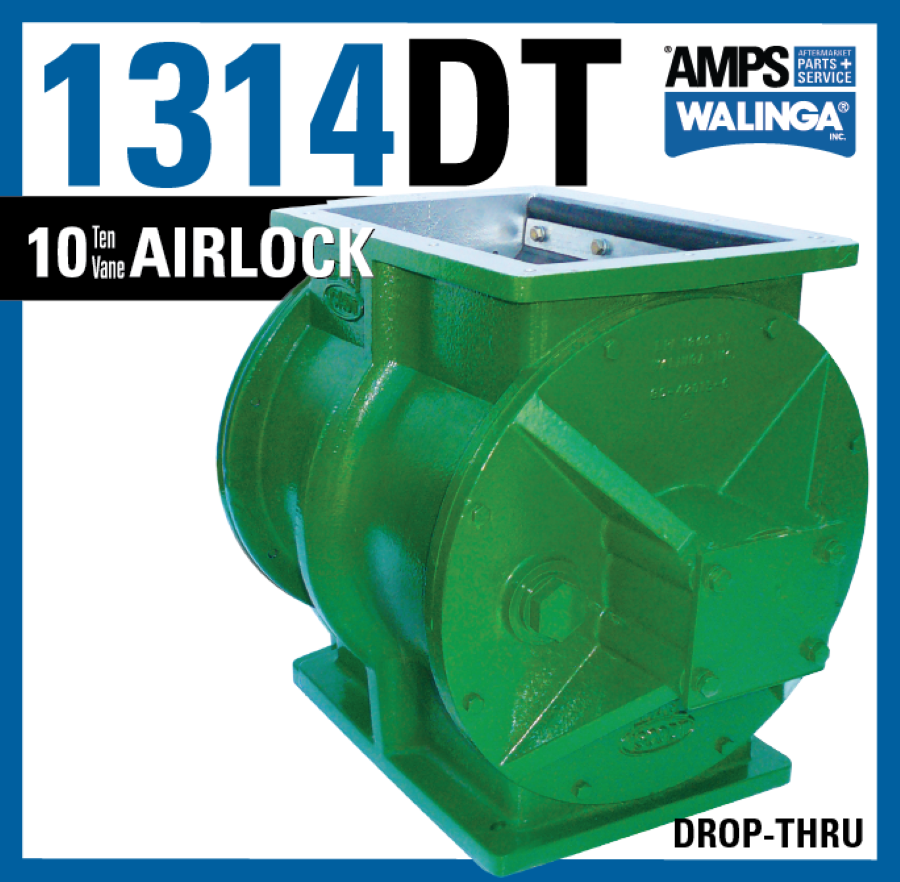

Walinga's 1314 Drop-Thru Airlock

Designed for maximum efficiency and minimal bulk damage the airlock housing is precision machined from a cast iron shell for unequaled performance. The 10 vane fabricated steel rotor has adjustable stainless steel tips for longer life. Walinga’s latest innovations include the modification of the inlet and outlet ports with flow contours for maximum capacity. To minimize bulk damage and improve performance, a special rotor wiper levels the pockets. The entire assembly is powered by an electric gear box. A chain drive transfers power to the airlock and the units ship with maintenance free factory sealed bearings. Each system can be customized to your production needs.

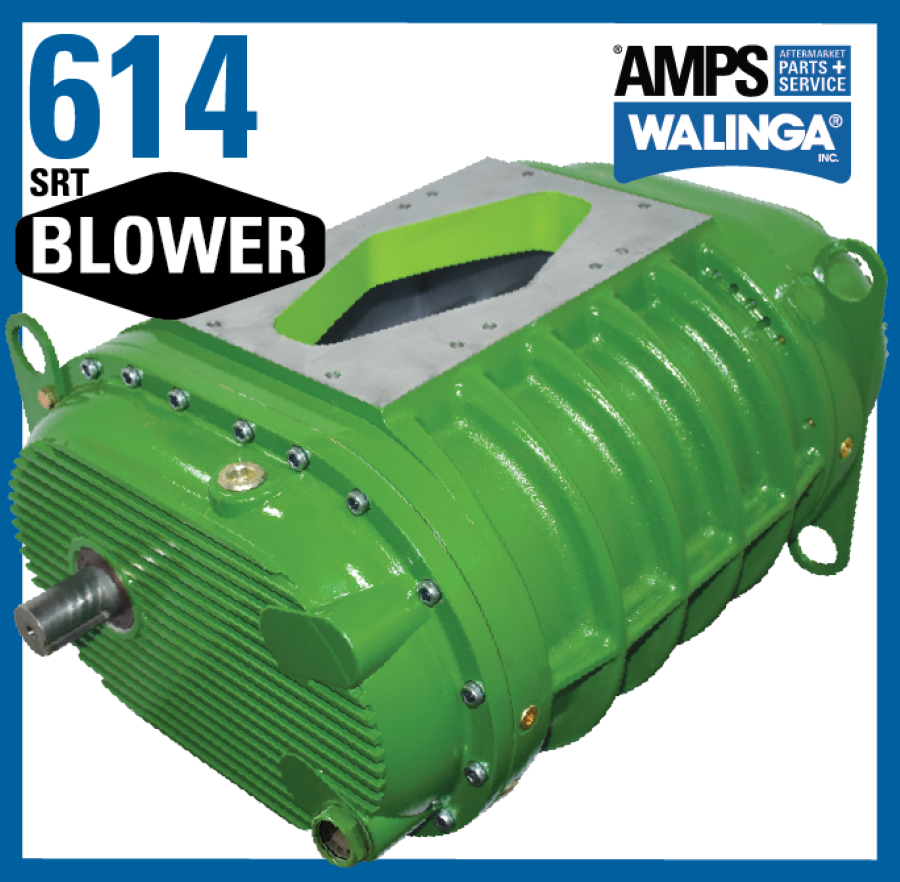

Walinga's 614 Blower

Experienced in the manufacturing of feed and grain handling equipment, Walinga is first for quality. Walinga blowers are fabricated from special alloy castings that facilitate hardening. Walinga’s proprietary super hardening process out-performs chrome hardened finishes. The hardening process eliminates premature wear from abrasive dust, ensuring a much longer life than unhardened blowers.
