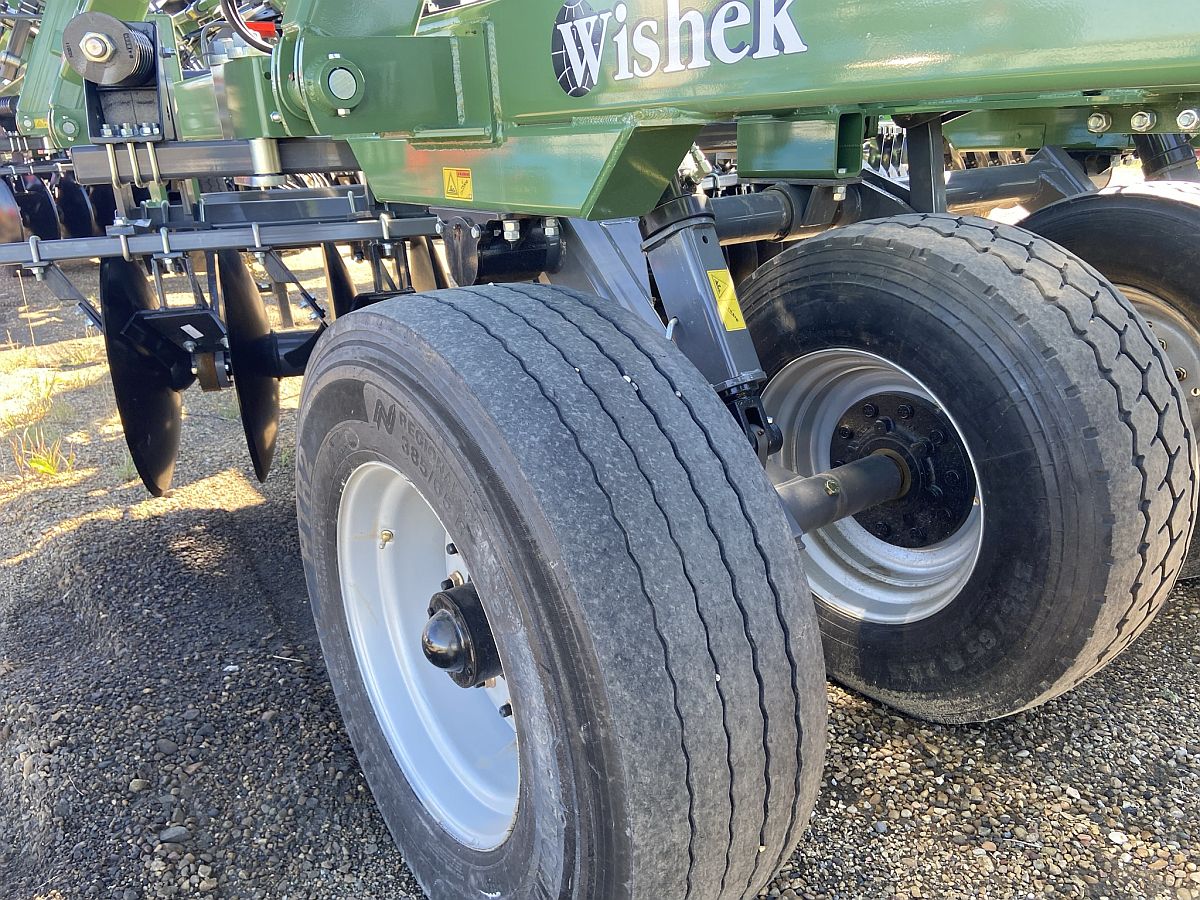

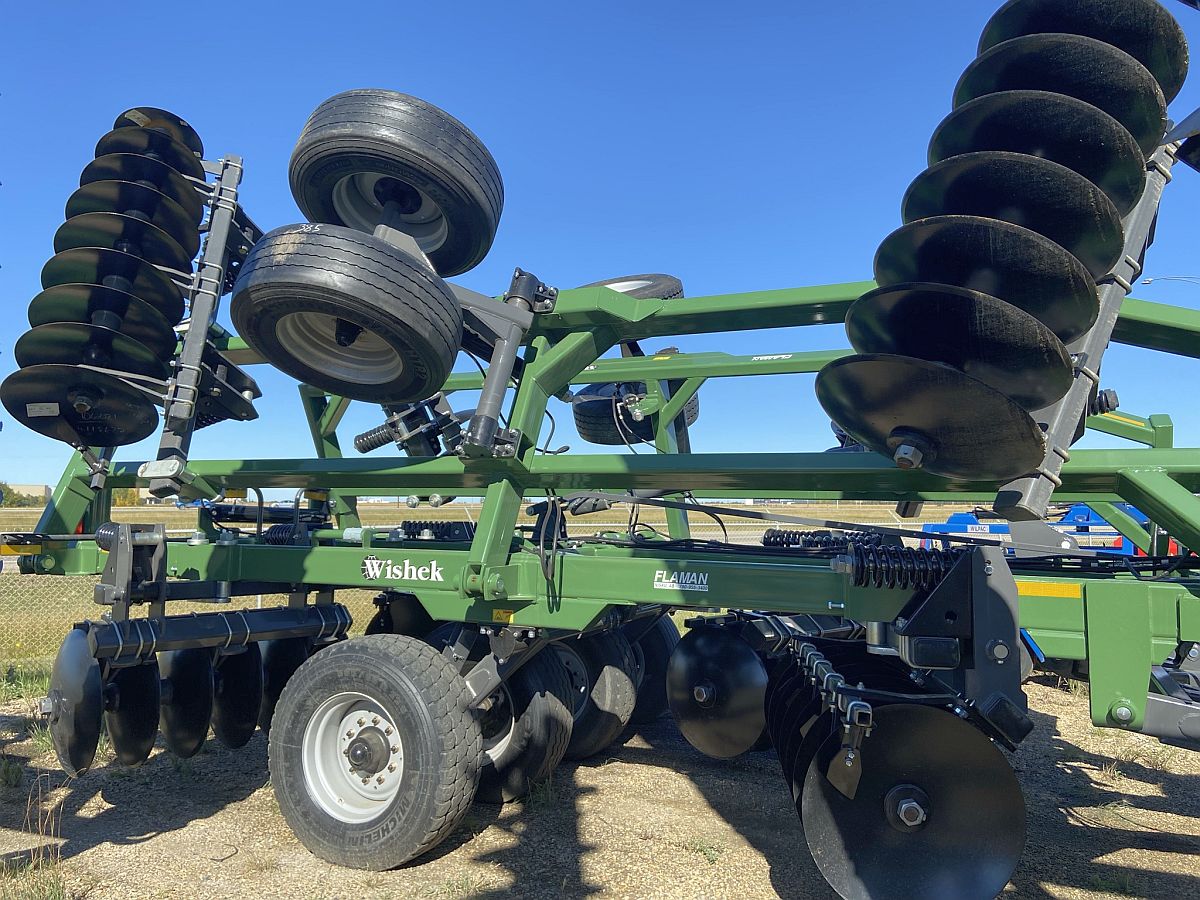

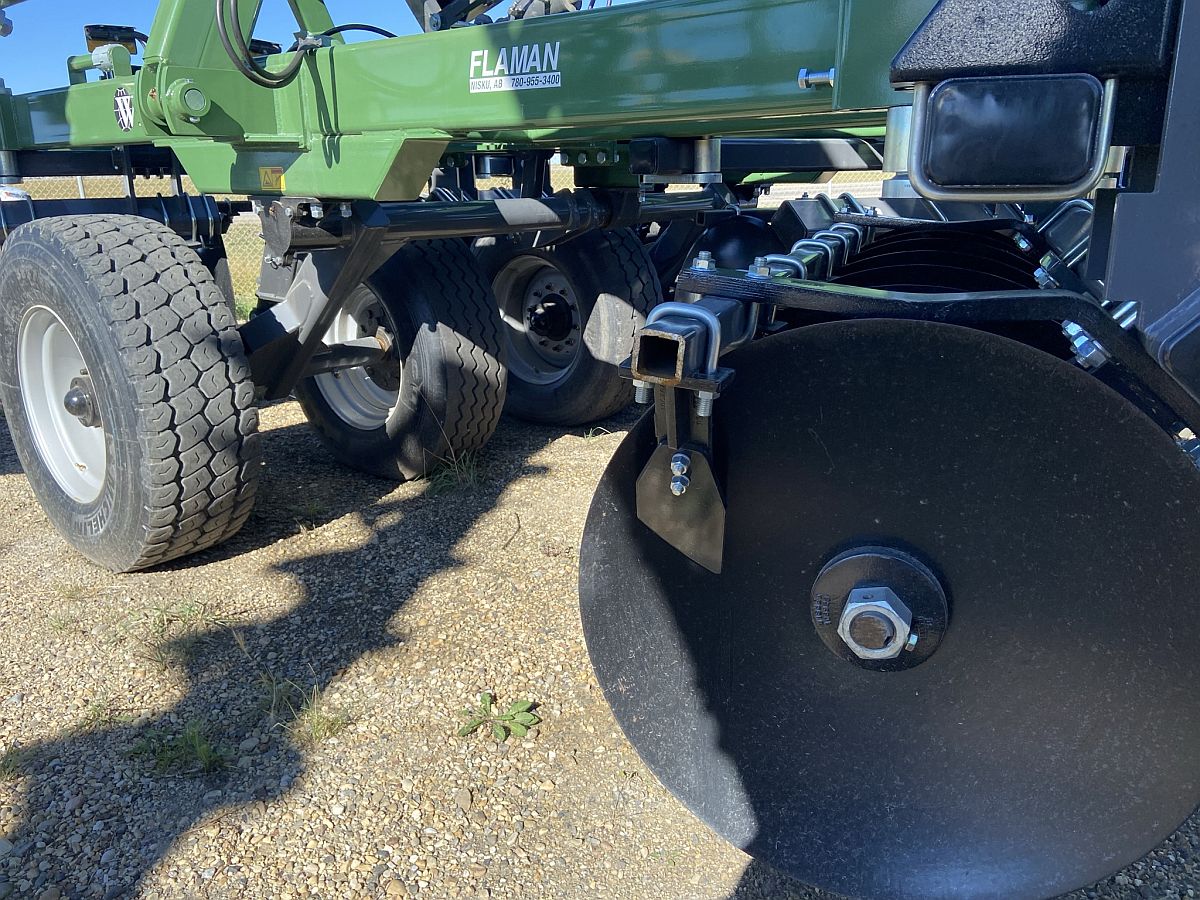

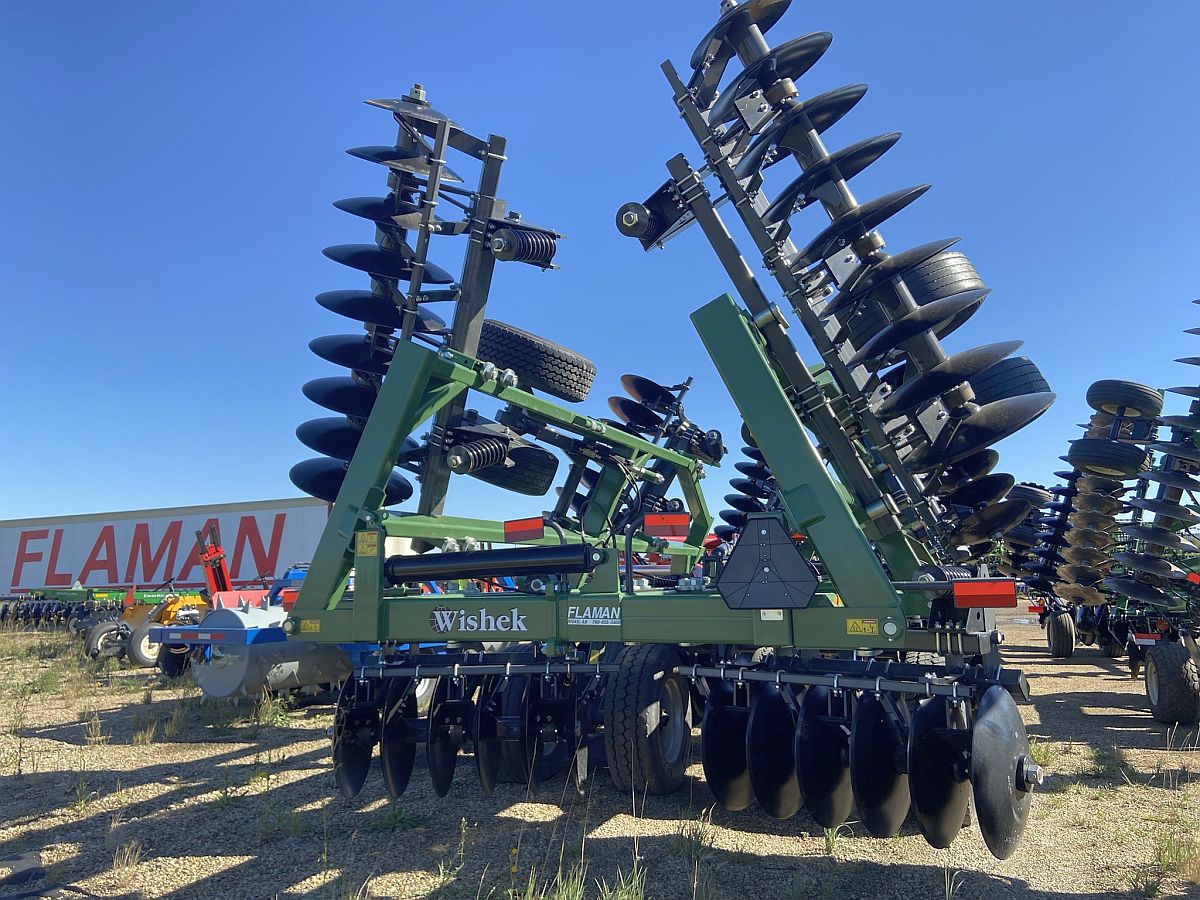

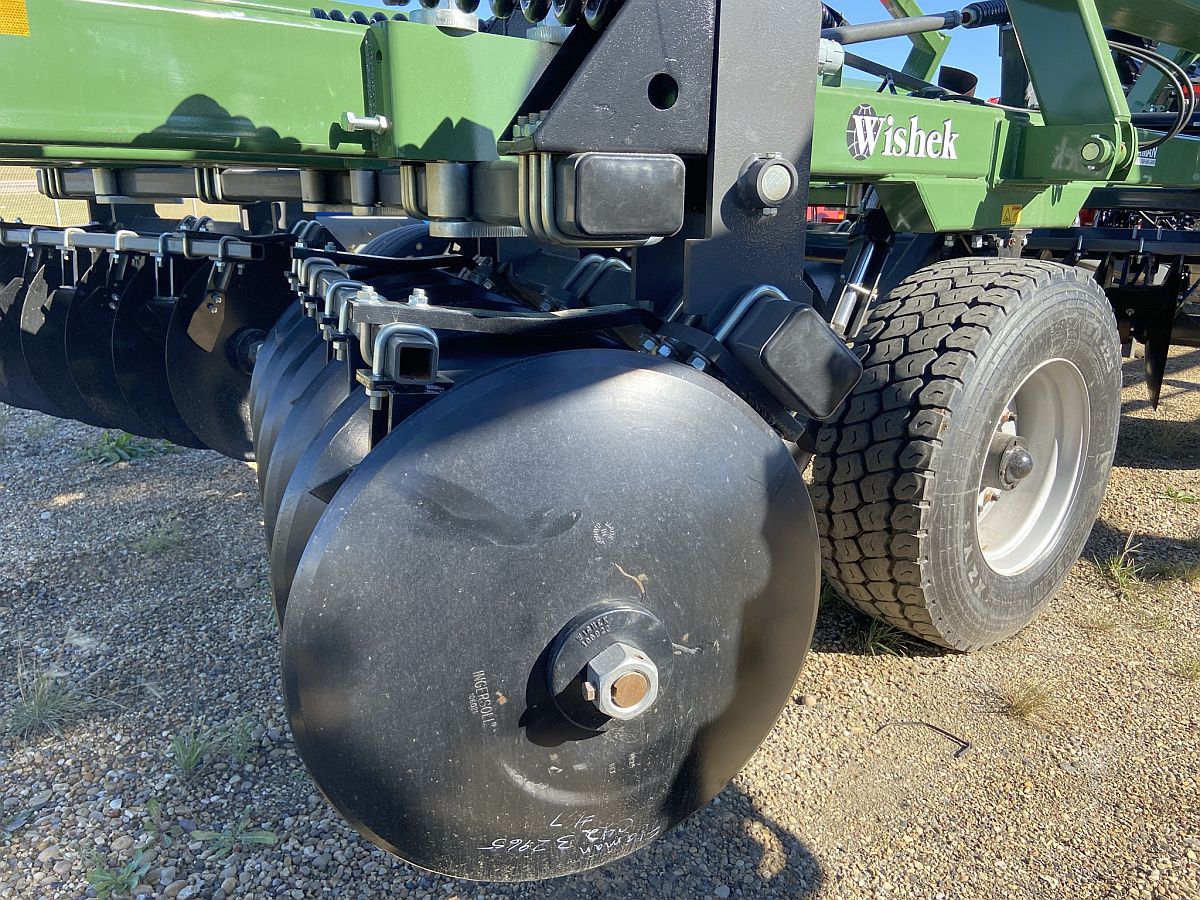

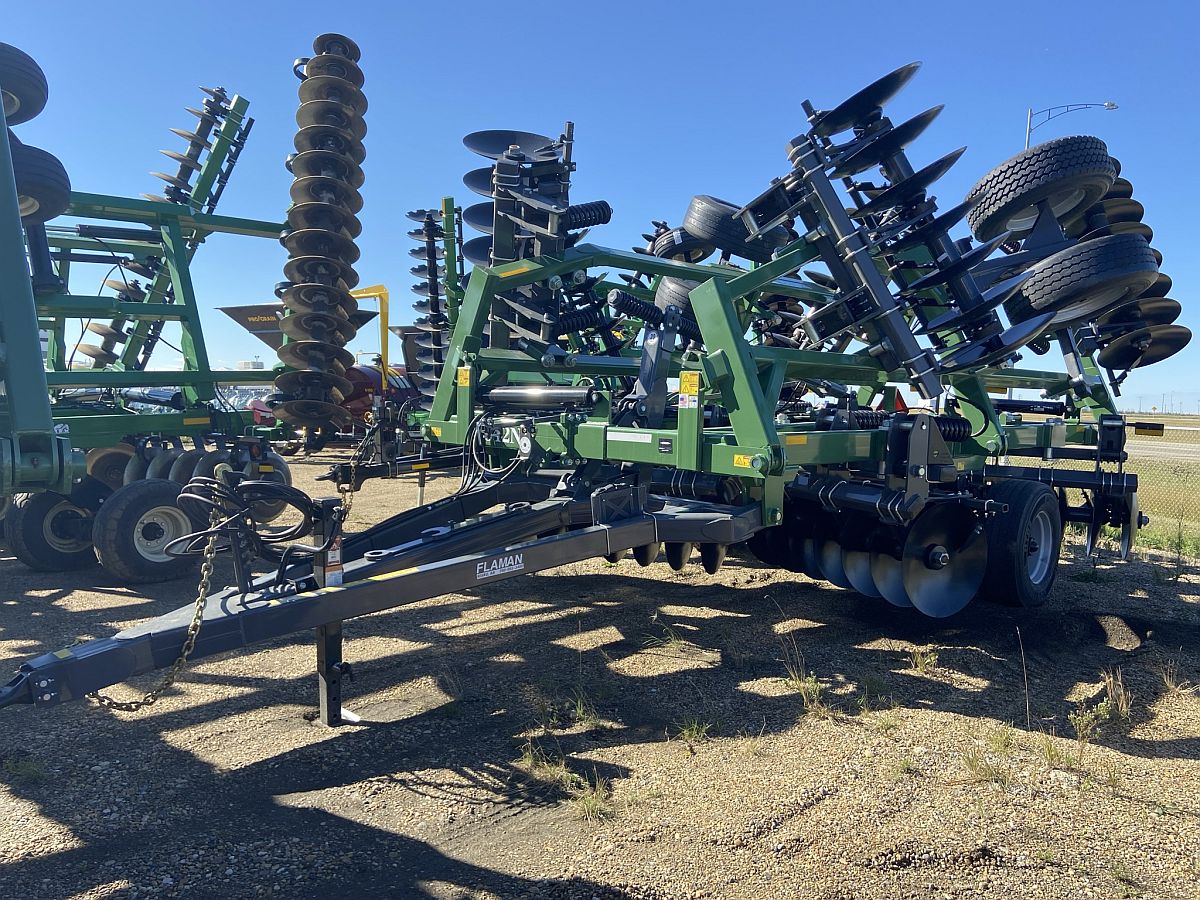

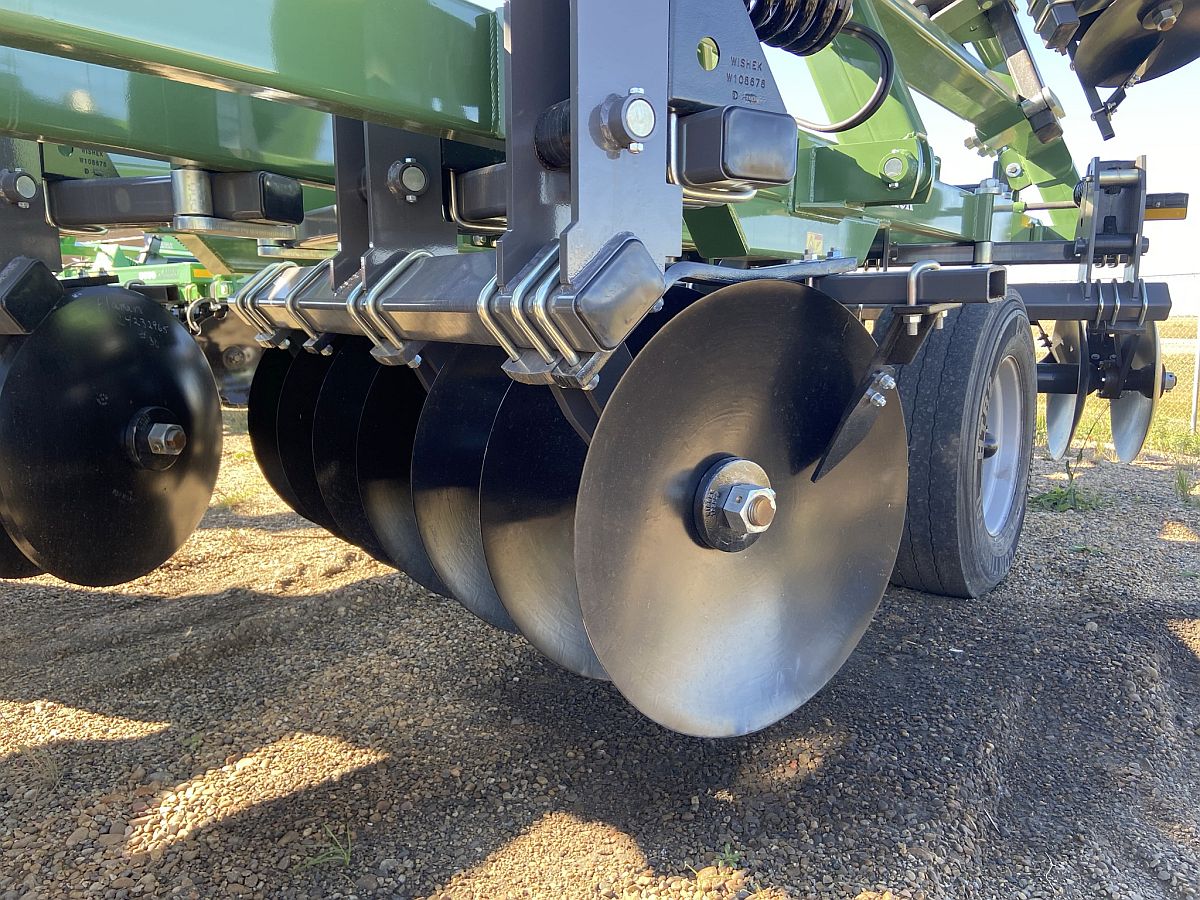

Wishek 842-NT Disc

• 26' Working width
• Hydraulic Lift
• 58 Blades (28 front, 30 rear)
• *30" Smooth Blades Front & Rear
• *Scraper Package Upgrade
• Single Point Depth Control
• *Center Section Hull Upgrade
• Hydraulic Leveler
• 500lbs per blade
• 260–335 HP Required
• 15′ 9″ Transport width
• 17′ 9″ Transport height
• 27 3/8" Front blade spacing
• 28 5/8" Rear blade spacing

• 4″ x 8″ x 3/8″ (102 x 203 x 10 mm) Tubular frame
• Hitch jack
• Leveling crank

• Safety chain
• Transport warning light package

• 8-Bolt hubs (14’–30′) (4.3–9.1 m)
• 10-Bolt hubs (34’–38′) (10.4–11.6 m) – main frames only
• 12.5L x 15 tires on non-winged units
• (used) 385/65R 22.50 tires on winged units

• 30" Smooth Blades Front & Rear
• 11″ (28 cm) blade spacing
• 1-15/16″ (5 cm) gang shafts
• 214 series re-lube gang bearings
• Gang angle adjustment
• Spring cushion gangs
• Gang bolt wrench
• Solid mount single scrapers

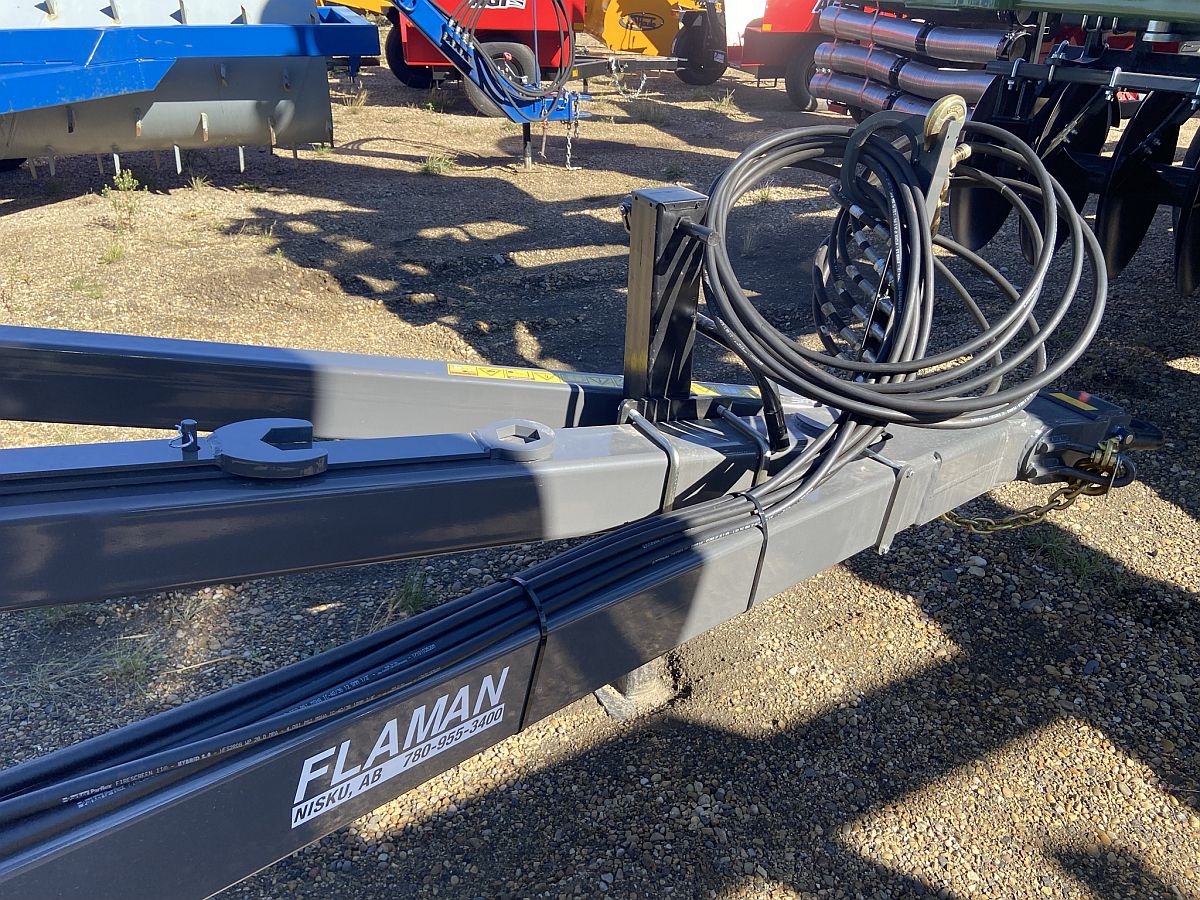

• Hydraulic cylinders with hoses to tractor
